Serial number

Easy Access to
Model Info

Some newer appliance model/serial tags have QR codes that can be scanned with your phone to take you directly to information pertaining to your specific product.

Cooking

5-in-1 Oven with Advantium Technology
Cooktop
hearth oven
microwave Drawer
microwave oven
outdoor grill
Professional range
range hood
rangetop
telescopic downdraft vent
wall oven
warming drawer

Refrigeration

30” Integrated bottom freezer refrigerator
all-refrigerator and all-freezer
Bottom Freezer Refrigerator
column Refrigerator and freezer
French Door Refrigerator
ice maker
refrigerator drawer
side-by-Side refrigerator
undercounter refrigerator
wine reserve and beverage center

Cleaning

compactor
dishwasher

Helpful Information

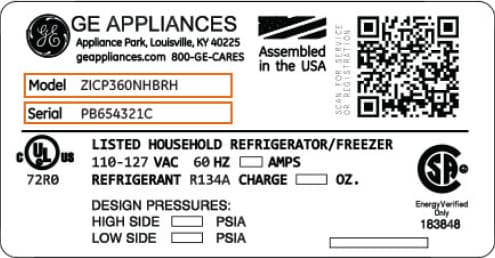

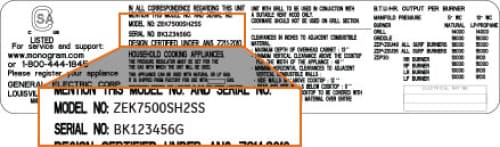

Examples

Model numbers...

• Typically begin with Z or U, include numbers, and end with letters

• Are usually located on the inside of your appliance

• Are usually found on rectangle or square tags, but shape and size may vary.

serial numbers...

• Include 2 letters followed by 6 numbers and may be followed by an additional letter

*model plates are subject to change and may vary from examples shown. All locations of plates listed are the most likely possible location. There has been some variation in placement over years of production for each product category.

advantium 5-in-1 oven

The serial plate is located on the oven cavity flange, behind the door.

cooktop

The serial plate is located on the bottom of the cooktop.

Hearth Oven

The serial plate is located on the bottom of the front panel..

microwave drawer

Possible Location: The serial plate is located on the center of the microwave floor, behind the drawer. It is only visible when the drawer is pulled out to the stop position.

microwave

The serial plate is located on the inside wall.

Outdoor grill

The serial plate for grills is located on the bottom of the drip tray or behind the control panel. On older models, the rating plate is (looking from the front) on the back top left corner.

professional Range

The serial and model numbers are located behind the left-most knob for convenience. The full rating label is located on the bottom of the control panel—visible when the oven door is open.

Range Hood

The serial plate is located behind the removable filters.

rangetop

The serial and model numbers are located behind the left-most knob for convenience.

telescopic downdraft vent

The serial plate is located on the upper right corner next to the blower motor. Once the cooktop is installed, it may not be visible.

wall oven

The serial plate is located on the oven cavity flange, behind the door.

warming drawer

The serial plate is located on the right side of the cavity (remove pan to access).

30” Integrated bottom freezer refrigerator

The serial plate is located on the center of the floor of the fresh-food compartment beneath the vegetable drawer.

All-refrigerator and all-freezer

The serial plate is located inside the refrigerator/freezer below the bottom storage drawer on the right side. A 2nd serial plate is located behind grille panel in the upper left side of the overhead compartment.

Bottom freezer refrigerator

The serial plate is located inside the fresh-food compartment, below the bottom storage drawer on the right side. A 2nd serial plate is located behind grille panel in the upper left side of the overhead compartment.

Column refrigerator and freezer

The serial plate is located on the hinge side wall of your appliance. The refrigerator label is beside the humidity control drawer. The freezer label is beside the ice storage drawer.

french door refrigerator

The serial plate is located inside the fresh-food compartment, below the bottom storage drawer on the right side.

ice maker

The serial plate is located on the right wall of the ice storage bin.

Refrigerator drawer

The serial plate is located below the bottom drawer liner on the left side.

side-by-side refrigerator

The serial plate is located in the lower right side of the fresh-food compartment beneath the climate-control drawer. A 2nd serial plate is located behind grille panel in the upper left side of the overhead compartment. The serial plate may also be located inside the fresh-food compartment, at the top and on the right side.

undercounter refrigerator

The serial plate is located on the inside ceiling or on the left wall below the ice compartment.

Wine reserve and beverage center

The serial plate is located on the inside ceiling.

compactor

The serial plate is located on the front of the frame.

dishwasher

The serial plate is located on the tub wall just inside the door.
